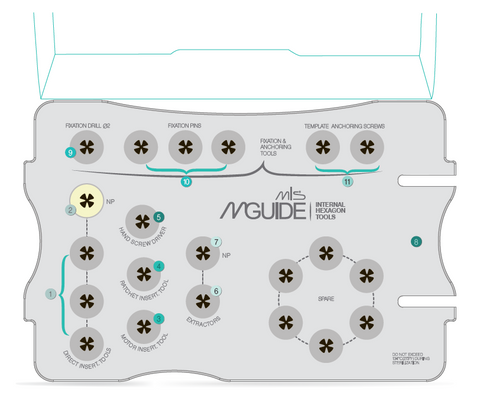

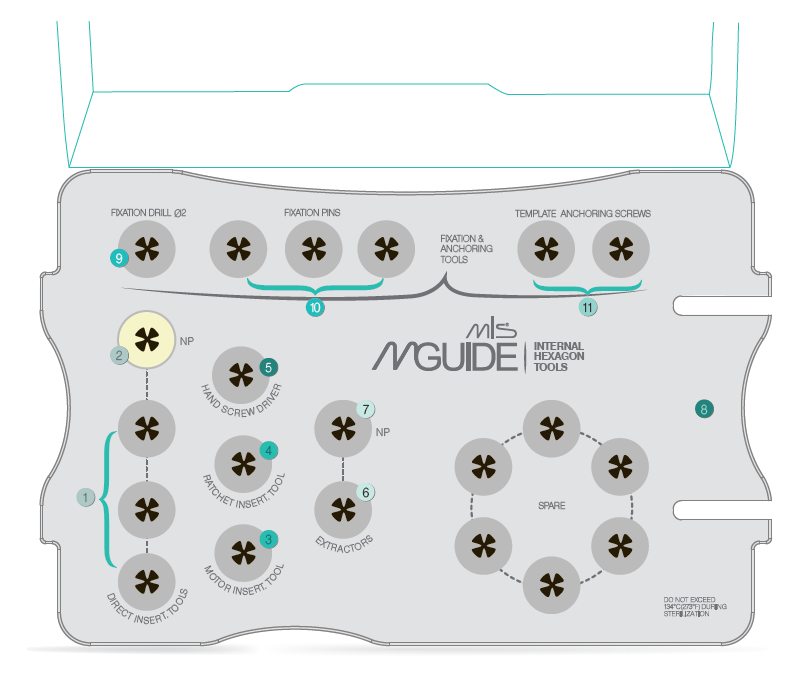

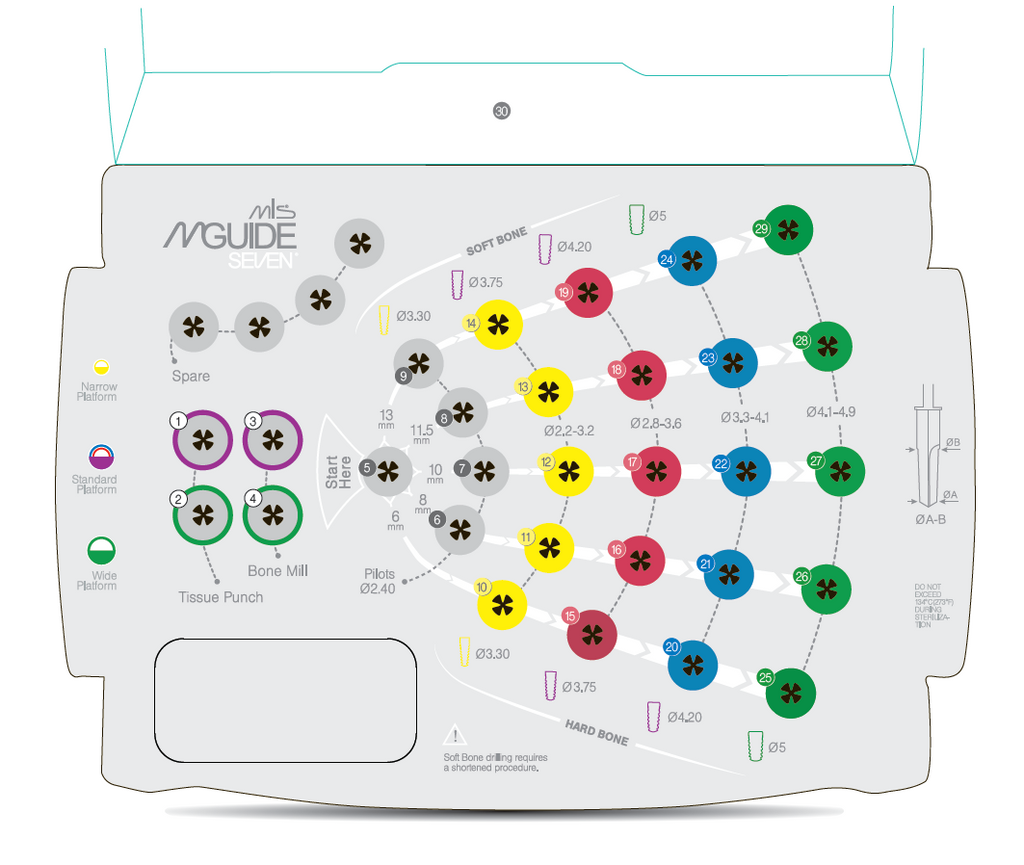

MGUIDE Set for SEVEN Implant

MG-K001

Shopify secure badge

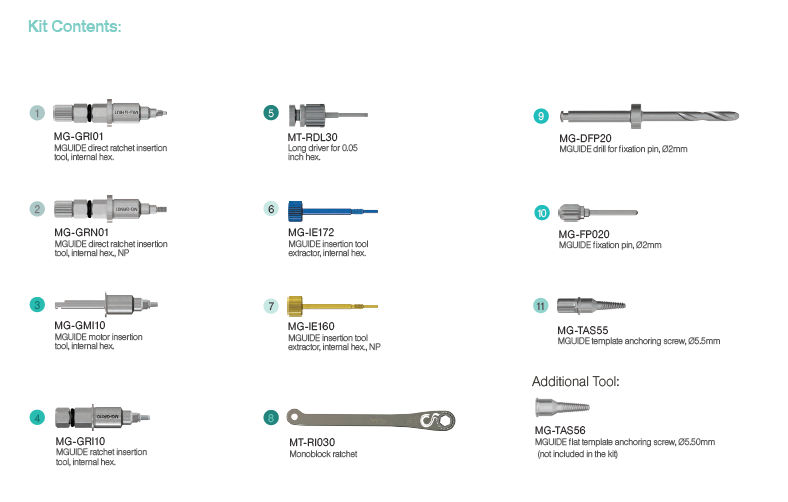

MT-RI030 Monoblock ratchet, L84mm
MT-HHR13 Hand driver for 0.05 inch, L28mm

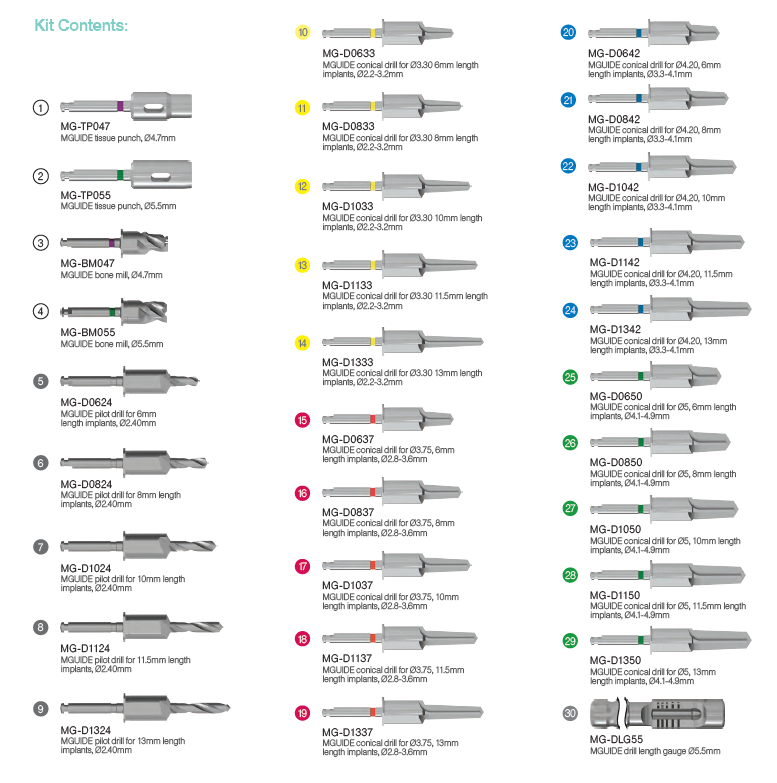

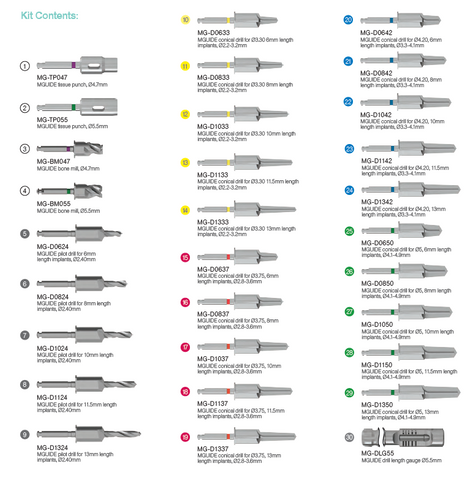

MG-BM047 Guided bone mill, Ø4.7mm, L24.5mm
MG-TP047 Guided tissue punch, Ø4.7mm, L26mm
MG-TP055 Guided tissue punch, Ø5.5mm, L26mm
MG-BM055 MGUIDE bone mill, Ø5.5mm, L24.5mm
MG-D0624 MGUIDE pilot drill for 6mm implants, Ø2.4mm, L30.8mm
MG-D0824 MGUIDE pilot drill for 8mm implants, Ø2.4mm, L32.8mm
MG-D1024 MGUIDE pilot drill for 10mm implants, Ø2.4mm, L34.8mm
MG-D1124 MGUIDE pilot drill for 11.5mm implants, Ø2.4mm, L36.3mm
MG-D1324 MGUIDE pilot drill for 13mm implants, Ø2.4mm, L37.8mm
MG-D0633 MGUIDE drill for Ø3.30 x 6mm implant, Ø3.2mm, L30.8mm
MG-D0833 MGUIDE drill for Ø3.30 x 8mm implant, Ø3.2mm, L32.8mm
MG-D1033 MGUIDE drill for Ø3.30 x 10mm implant, Ø3.2mm, L34.8mm
MG-D1337 MGUIDE drill for Ø3.75 x 13mm implant, Ø3.6mm, L37.8mm
MG-D1137 MGUIDE drill for Ø3.75 x 11.5mm implant, Ø3.6mm, L36.3mm
MG-D1037 MGUIDE drill for Ø3.75 x 10mm implant, Ø3.6mm, L34.8mm
MG-D0837 MGUIDE drill for Ø3.75 x 8mm implant, Ø3.6mm, L32.8mm
MG-D0637 MGUIDE drill for Ø3.75 x 6mm implant, Ø3.6mm, L30.8mm
MG-D1333 MGUIDE drill for Ø3.30 x 13mm implant, Ø3.2mm, L37.8mm
MG-D1133 MGUIDE drill for Ø3.30 x 11.5mm implant, Ø3.2mm, L36.3mm
MG-D0642 MGUIDE drill for Ø4.20 x 6mm implant, Ø4.1mm, L30.8mm
MG-D0842 MGUIDE drill for Ø4.20 x 8mm implant, Ø4.1mm, L32.8mm
MG-D1042 MGUIDE drill for Ø4.20 x 10mm implant, Ø4.1mm, L34.8mm
MG-D1142 MGUIDE drill for Ø4.20 x 11.5mm implant, Ø4.1mm, L36.3mm
MG-D1342 MGUIDE drill for Ø4.20 x 13mm implant, Ø4.1mm, L37.8mm
MG-D0650 MGUIDE drill for Ø5 x 6mm implant, Ø4.9mm, L30.8mm
MG-D0850 MGUIDE drill for Ø5 x 8mm implant, Ø4.9mm, L32.8mm
MG-D1050 MGUIDE drill for Ø5 x 10mm implant, Ø4.9mm, L34.8mm
MG-D1150 MGUIDE drill for Ø5 x 11.5mm implant, Ø4.9mm, L36.3mm
MG-D1350 MGUIDE drill for Ø5 x 13mm implant, Ø4.9mm, L37.8mm
MG-DLG55 MGUIDE drill length gauge, Ø5.5mm, L55mm
MG-GRI01 MGUIDE direct ratchet insertion tool, Ø7mm, L29.7mm
MG-GRN01 MGUIDE direct ratchet insertion tool, Ø7mm, L29.7mm
MG-GMI10 MGUIDE motor insertion tool, L28.9mm
MG-GRI10 MGUIDE ratchet insertion tool, Ø7mm, L24.5mm
MG-IE172 MGUIDE insertion tool extractor, L32.7mm
MG-IE160 MGUIDE insertion tool extractor, L32.7mm
MG-FP020 MGUIDE fixation pin, Ø2mm, L29mm
MG-TAS55 MGUIDE template anchoring screw, Ø5.5mm, L24mm
MG-DFP20 MGUIDE drill for fixation pin, Ø2mm, L35.3mm
